[en] Installation and Activation Improvements

[en] Checking for Updates

[en] NiceLabel periodically checks if a newer version is available online. The availability of a newer version is announced on the Landing page (the first page you see after starting the Designer) and on the About page. The link takes you to the download page of NiceLabel website.

[en] NOTE: Check for updates is not supported in NiceLabel LMS products yet.

[en] Product Selection not Shown for Known Product Level

[en] If the installation filename contains identification of the product edition to be installed, you no longer see product selection dialog during the installation. Product edition can be configured in the installation file name if the file name contains “_Pro”, “_Express”, or similar identifiers.

[en] New and Improved Functionalities

[en] New Landing Page and Backstage Start Tab

[en] Each time you start NiceLabel 2017.3, a new landing page is displayed providing shortcuts to useful information sources, frequently used commands and NiceLabel news.

  • [en] You can quickly create a new label or a solution, or continue your work on existing files. You can access local files and files stored in the Document Management System.

  • [en] You can quickly access learning material, such as video tutorials, user guides and samples.

  • [en] There is a NiceLabel driver download link for your printer.

  • [en] You can see information about your NiceLabel installation, including version info, license level, vendor information, and notification about possible new version available online.

  • [en] If your software is not activated yet, activate it from here.

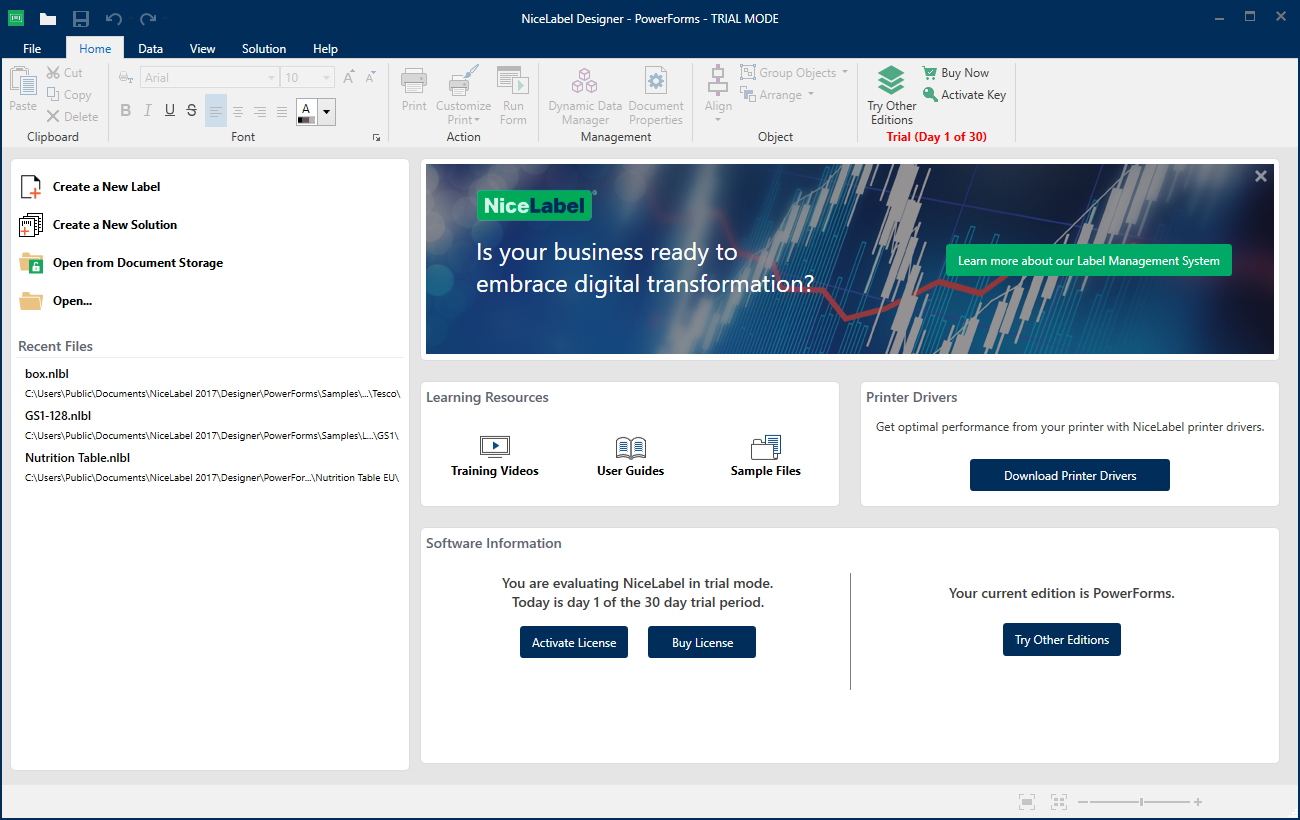

[en] Figure 1: Useful shortcuts and information sources are available on the landing page

[en] The same set of information is also accessible once the Designer is already running. Open it using “Start” panel on the File (Backstage) tab.

[en] Allowing Only Reserved Printers to be used

[en] A new setting is available on the “Printer usage” page to configure NiceLabel applications on the workstation to use exclusively reserved printers. Reserved printers have a seat license bound to them and are guaranteed to be always available.

[en] This setting is valuable on the locked-down production floor, where printing can be done on approved printers only.

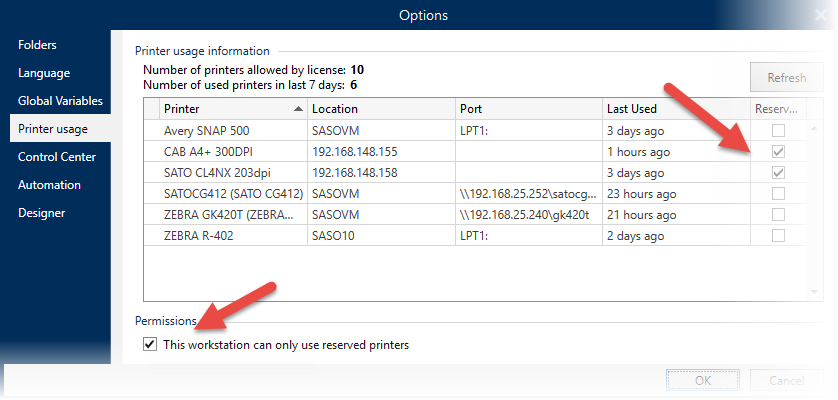

[en] Figure 2: Allowing NiceLabel applications to only use reserved printers

[en] You can enable the option “This workstation can only use reserved printers” on multiple workstations and they will all be able to print to the same reserved printers. Additionally, you can pre-configure a custom list of reserved printers for the entire printing environment. All workstations in such environment use printer seats from the same pool of licenses.

[en] NOTE: For more information on pre-configuration of reserved printers, see help or user guides.

[en] Updated Support for Data-encoding and Business Communication Standards (2017.3.1)

  • [en] Updated support for GS1-128 specification (issue 17.1, July 2017). Support for GS1-128 in NiceLabel 2017 is updated according to the last changes in GS1-128 General Specifications Issue 17.1. There are new (AI22) and updated (AI 91-99, 20, 8006) application identifiers.

  • [en] Updated support for GS1-128 specification (issue 18.0, January 2018) (2017.3.1). Support for GS1-128 in NiceLabel 2017 is updated according to the last changes in GS1-128 General Specifications Issue 18.0. There are the following new application identifiers: (AI 714, AI 8013).

  • [en] IronPython library update to latest version 2.7.7. This version provides more stability and various bug fixes for Python support.

[en] Support for Datamatrix Rectangular Extension (DMRE)

[en] Datamatrix 2D code is a cornerstone of efficient AutoID solutions that became widely used in applications of various industries, healthcare and distribution segments. Datamatrix usually consists of a square-shaped 2D code, although six rectangular extensions were available already, but only with minor data capacity (6 to 72 alphanumeric characters).

[en] The new Datamatrix Rectangular Extension adds twelve new rectangular high-capacity shapes. These shapes solve identification issues caused by insufficient available space for Datamatrix symbol in the following areas:

  • [en] Pharmaceutical

  • [en] Medical devices

  • [en] Parts and components in electronics industry

[en] NiceLabel 2017.3 fully supports all DMRE codes.


[en] Figure 3: Extended rectangular DataMatrix code with a module size 8×64 (image source:

[en] Improved User Experience

  • [en] Display each document in its own window. A new setting under NiceLabel Options allows you to decide if you want to create a new or existing document in the current instance of NiceLabel Designer, or if you want to open it in a new instance.

  • [en] Function definition is editable immediately after creating a new function. As soon as you add a new function, the function properties dialog opens for editing. You no longer have to double click the function to edit it.

  • [en] PDF library update. The updated library supports transparent and semi-transparent (such as images with gradients) images.

  • [en] Font names in the printer driver support Unicode. Some printer drivers can report their list of internal fonts in UTF-8 encoding. NiceLabel 2017.3 displays the full Unicode name of such fonts.

[en] New Condition for Label Object Visibility

[en] NOTE: Product editions NiceLabel Designer Pro or above are required for this feature.

[en] In NiceLabel Designer, you can easily control label object’s visibility. For example, under some circumstance, the object must print and, in other cases, it must not print.

[en] Each object has a property “Visible” that determines whether it should be printed.

[en] In previous versions, object visibility was triggered by a variable being EQUAL (=) to some control value in the condition. In NiceLabel 2017.3, the variable can also be NOT EQUAL (≠) to the control value.

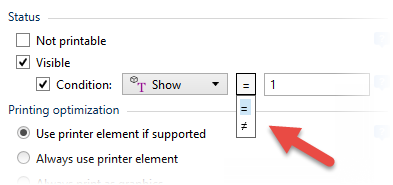

[en] Figure 4: You can control object visibility with EQUAL and NOT EQUAL relations

[en] Importing Variables from Oracle WMS File

[en] NOTE: Product editions NiceLabel Designer Pro or above are required for this feature.

[en] Data sources in a NiceLabel document define values for objects with dynamic content. NiceLabel 2017.2 release provided an easy method for label designers to consolidate and re-use data sources from existing documents. A label designer could import data sources into a new label or solution and easily re-use them. This helps maintain consistency across portfolio of label templates as well as saves time by allowing easier re-use of already configured functions and database connections.

[en] NiceLabel 2017.3 can additionally import variables from the Oracle WMS file that enables label printing directly from within the Oracle Warehouse Management environment. NiceLabel 2017.3 imports variables and their provisional values from this specific type of XML file. Provisional values help you preview sample data values during the label design process.

[en] Users of Oracle WMS system benefit significantly by direct importing. The result is much faster label design process as the import of all necessary variables from Oracle application into a label becomes available.

[en] The Import Data Sources button is available in Dynamic Data Manager.

[en] <?xml version="1.0" encoding="UTF-8" standalone="no"?>

[en] <!DOCTYPE labels SYSTEM "label.dtd">

[en] <labels _FORMAT ="material.nlbl" _QUANTITY="1" _PRINTERNAME="" _JOBNAME="Material">

[en] <label>

[en] <variable name= "item">O Ring</variable>

[en] <variable name= "quantity">2</variable>

[en] <variable name= "lot">123</variable>

[en] <variable name= "uom">Ea</variable>

[en] <variable name= "organization">A1</variable>

[en] </label>

[en] </labels>

[en] Figure 5: Example of Oracle WMS XML-formatted set of data for label printing

[en] New Custom Command “SESSIONEND”

[en] NOTE: Product editions NiceLabel PowerForms or above are required for this feature.

[en] The default printing mode in NiceLabel 2017 is “session print”. In this case, all labels belonging to the same print batch are sent to printer in a continuous print stream. This ensures smooth printout without printer “hiccups” and the fastest possible throughput. NiceLabel strives to enable session print automatically whenever possible. Some events, such as label change or printer change, stop the session print.

[en] With NiceLabel 2017.3, you can manually enforce the ongoing session printing to stop. You can use “Send Custom Commands” action with the SESSIONEND command. The next label that must be printed will be sent separately in a new print job.

[en] Error Message for NiceLabel Proxy Service 2017 not Running

[en] NiceLabel 2017 applications, such as Designer, Print or Automation, rely on the NiceLabel Proxy 2017 Service. This is a service that runs in the background and enables communication between various NiceLabel components.

[en] If NiceLabel Proxy Service 2017 is not running, NiceLabel software cannot function anymore. NiceLabel 2017.3 displays a warning message notifying the users about the erroneous situation and suggests a possible solution.

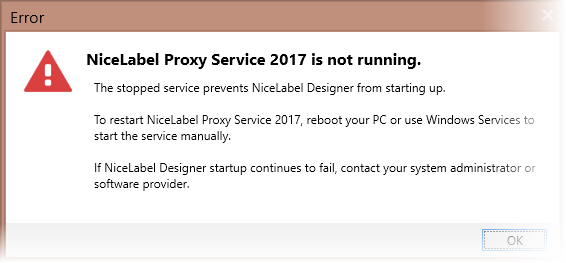

[en] Figure 6: New warning message informing that a vital NiceLabel component does not run

[en] Relative Object Positioning Supports Objects From Both Sides of the Label (2017.3.1)

[en] Relative positioning support in NiceLabel allows the objects to dynamically change their position based on the position and/or size of other label objects.

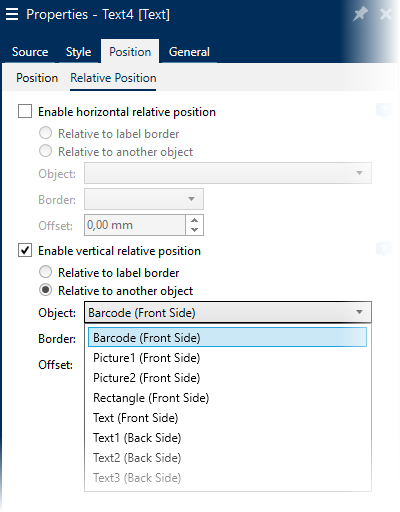

[en] Figure 7: The object can be linked to the position of object from the other label side

[en] With this release, object can change its position based on the object that is located on the opposite label side. A list of available objects to which the current object can be link with now contains objects from both label sides. Each object contains additional label side identifier for easy identification.

[en] Updated Stock Database (2017.3.1)

[en] The database of stocks (predefined label formats) that ships with NiceLabel now includes new stocks for SATO Horticultural labels. These tags, labels and signs are designed for the horticulture industry to withstand their use in harsh environments, and to be used for several years under most conditions. Stocks for metric and imperial units of measure are part of standard NiceLabel stock collection.

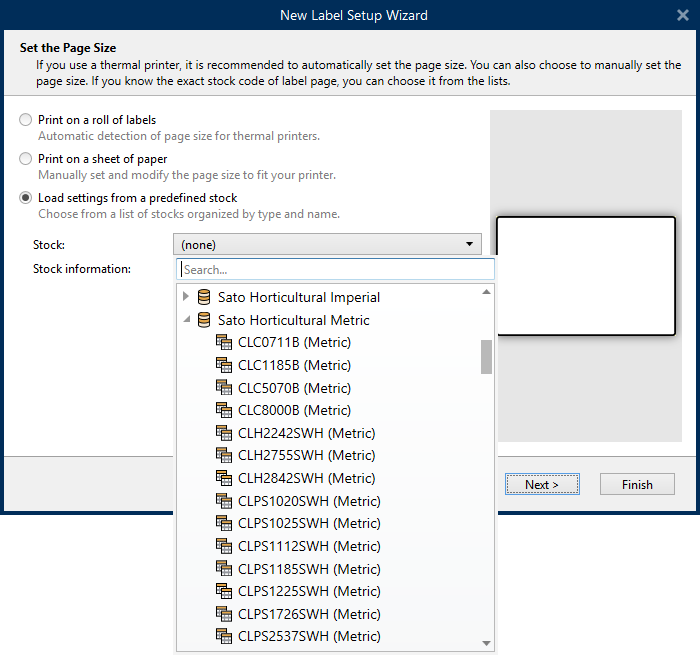

[en] Figure 8: New stocks available for SATO Horticultural labels
