MESSAGE

The calculated font size for {itemName} is {originalFontSize}. It could not be found. Font size changed to {bestFontSize}.

SEVERITY

Warning

DETAILS

The Converter cannot use the original font size of the Text object as defined in the LLM. NiceLabel does not support that specific font size with the used font. The Converter will use the closest available point size and assign it to the Text object.

RESOLUTION

  • Visually inspect the label and make sure the mentioned object(s) still displays and prints correctly. You might need to manually adjust the font size.

Tip

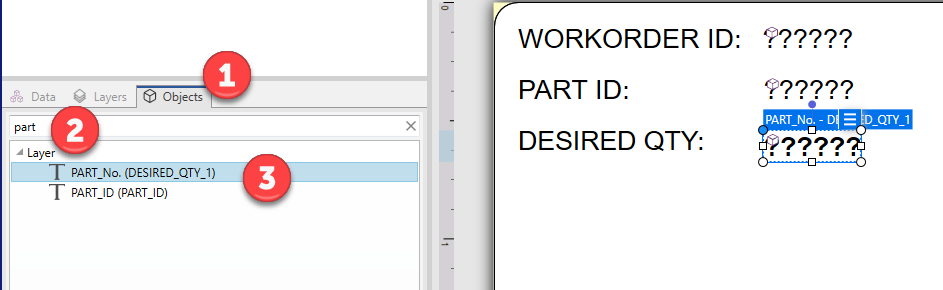

Use the Objects pane to locate the object on the label by its name.
