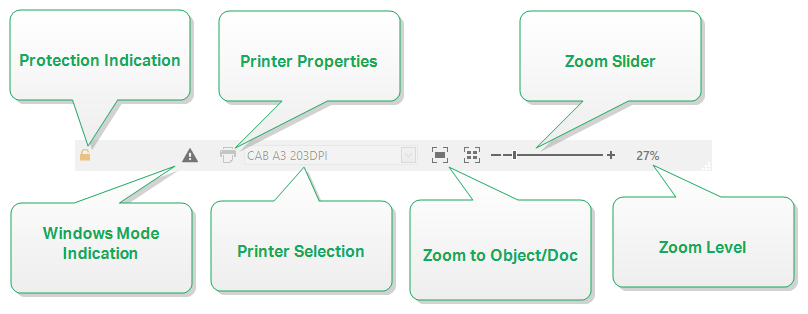

Printer and Status bar stretches over the bottom part of the Desktop designer window. The bar performs these roles:
-
Printer Selection for the current print job. Select your preferred printer from the drop-down list of installedprinters.
Tip
When changing a printer, label and paper size adapt automatically to the dimensions defined by the printer driver.
-
Printer Properties: Gives you direct access to the properties dialog of the selected printer driver.
-
Design surface zooming.
Status Bar Printer Selection dropdown list allows instant printer selection for label printing. The list is populated with printers, which are installed on the system.
Design surface dimensions adapt to the selected printer automatically – as defined by the printer driver.
