After you design and save your label templates, you can store them to your printers. You can store your label templates from NiceLabel Designer, Designer PowerForms, or Automation.

Important

When you use computers as printer servers, you want the same printer settings (like speed, darkness, ribbon use, etc.) to apply to all printer server users and users printing on shared printers from their computers.

To change printer driver defaults for all users, use the Printing Defaults option in your driver. See the KB article for detailed instructions.

Storing from Designer

  1. Open the label template you want to store to your printer.

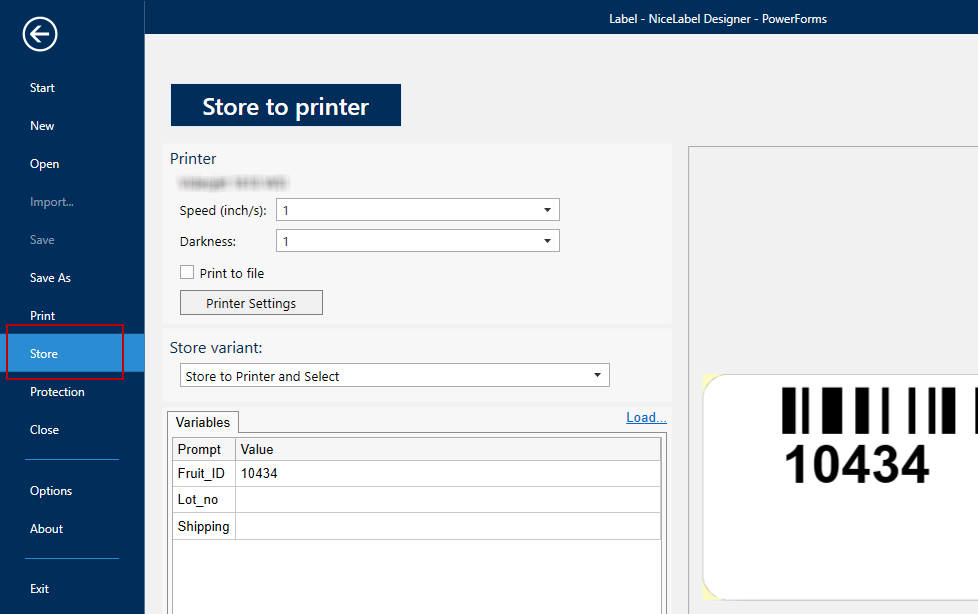

  2. Go to File > Store (or press <Ctrl>+P and click the Store button). The printing form opens.


    Note

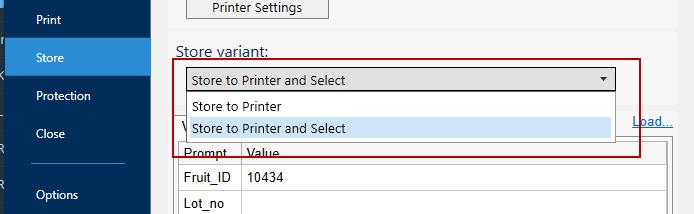

    You can also change the Store variant in printing form.


    Warning

    Print button does not store your label template to your printer.

Your label template is now stored to your printer.

Storing from Designer PowerForms

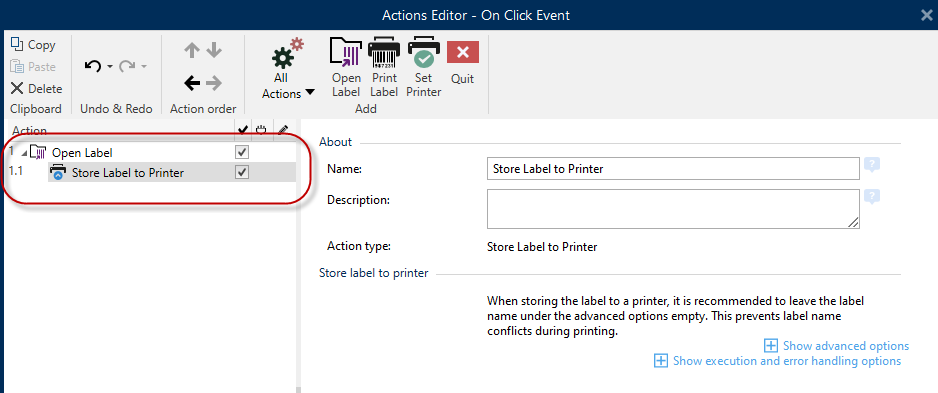

  1. Create a set of actions Open Label, Set Printer, and Store Label to Printer. Add a "Store" button on your form to run your actions.

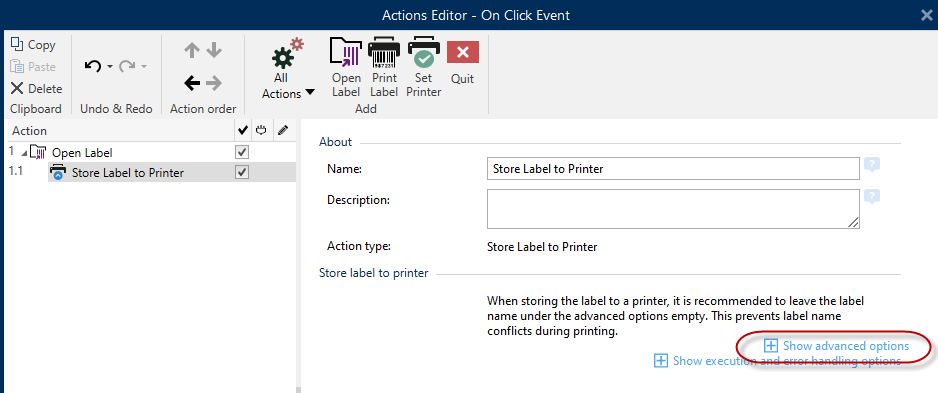

  2. Click Show advanced options.

  3. Set Label name to be used on the printer and Store variant.

  4. Click OK.

  5. Save and run your form.

When you press the "Store" button on your form or start your store actions with some other form event or condition, your label templates store to your printer.

Storing from Automation

Create a new trigger or open an existing trigger and add actions to store your labels.

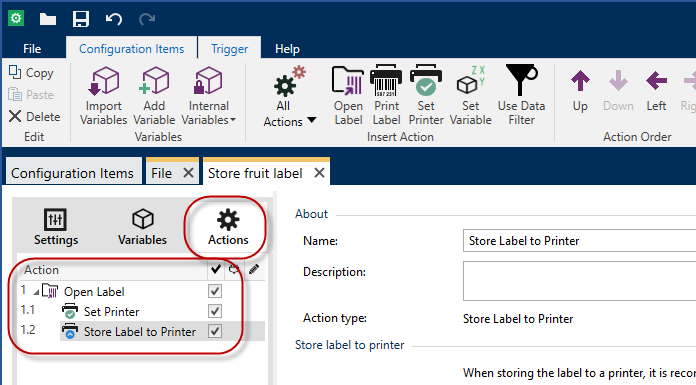

  1. Add a set of actions Open Label, Set Printer, and Store Label to Printer.

  2. Click Show advanced options.

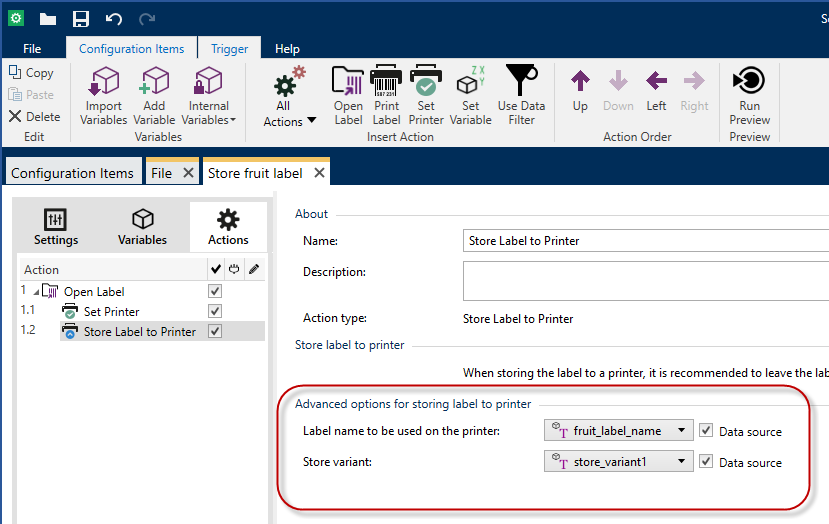

  3. Set Label name to be used on the printer and Store variant.

  4. Save and deploy your Automation configuration.

At the Automation trigger event, your label stores to your printer.
