[en] Use Macro 6 special character (ISO/IEC 16022 standard)

Die offizielle Übersetzung liegt noch nicht vor.

[en] Problem

[en] You would like to create a GS1-compliant function/character - Macro 6 from ISO/IEC 16022 standard to use it with your 2D barcode (in most cases with Datamatrix).

[en] Solution

[en] NiceLabel Desktop Designer supports the ISO/IEC 16022 standard with a Transfer Data Syntax for High Capacity ADC Media function. The function encodes your data in a structure inside the header and trailer characters.

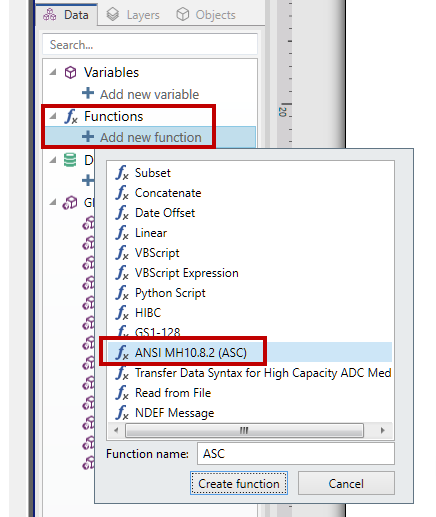

  1. [en] In NiceLabel Desktop Designer, create your ANSI MH10.8.2 (ASC) function.

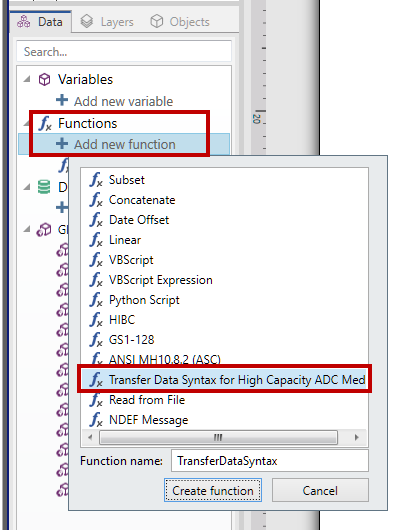

  2. [en] Create your Transfer Data Syntax for High Capacity ADC Media function.

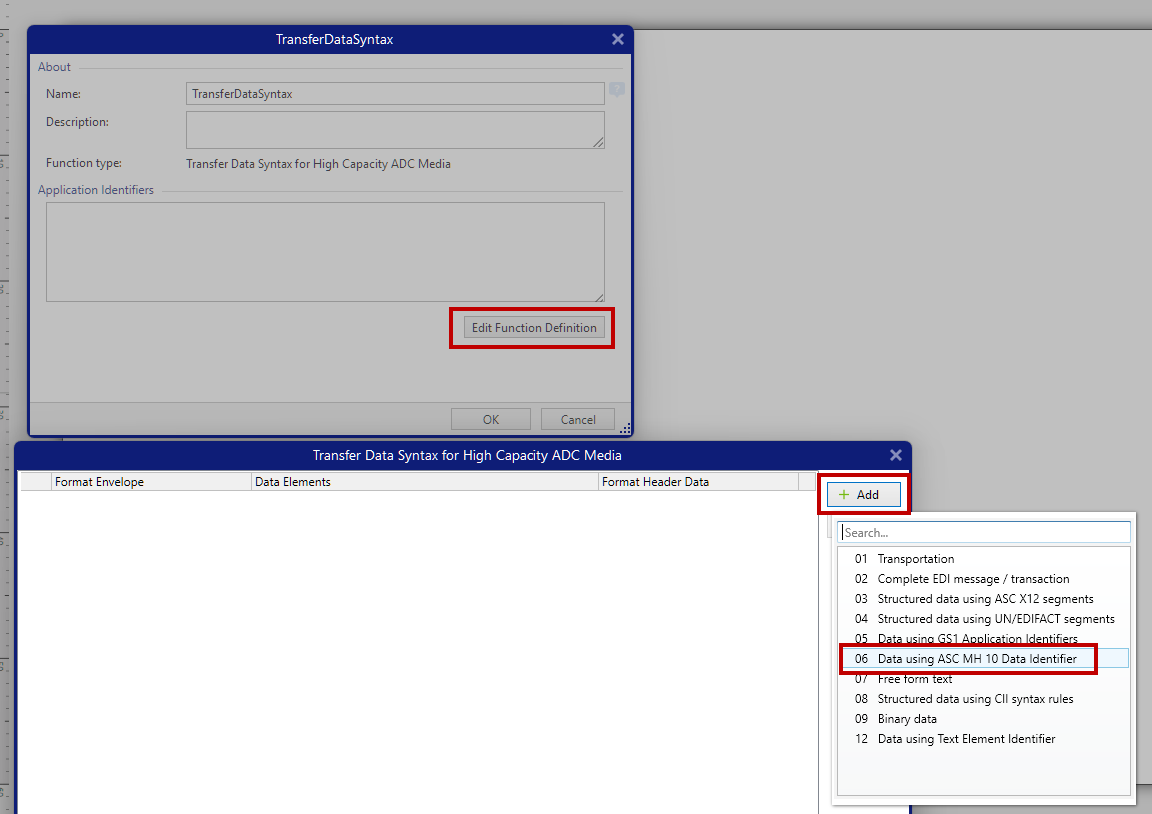

  3. [en] Edit the function definition to add Data using ASC MH 10 Data Identifier.

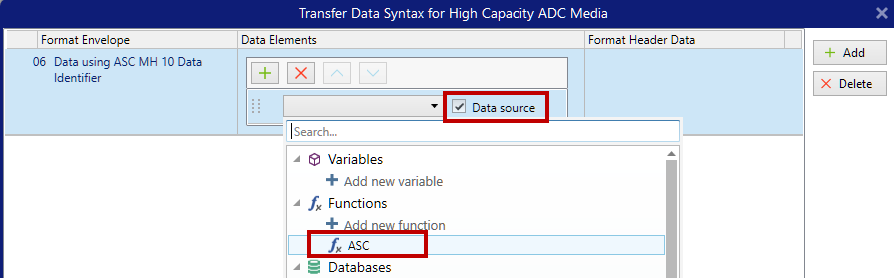

  4. [en] Add the ASC function as your Data source.


  5. [en] Connect your newly created TransferDataSyntax function to your 2D barcode.
